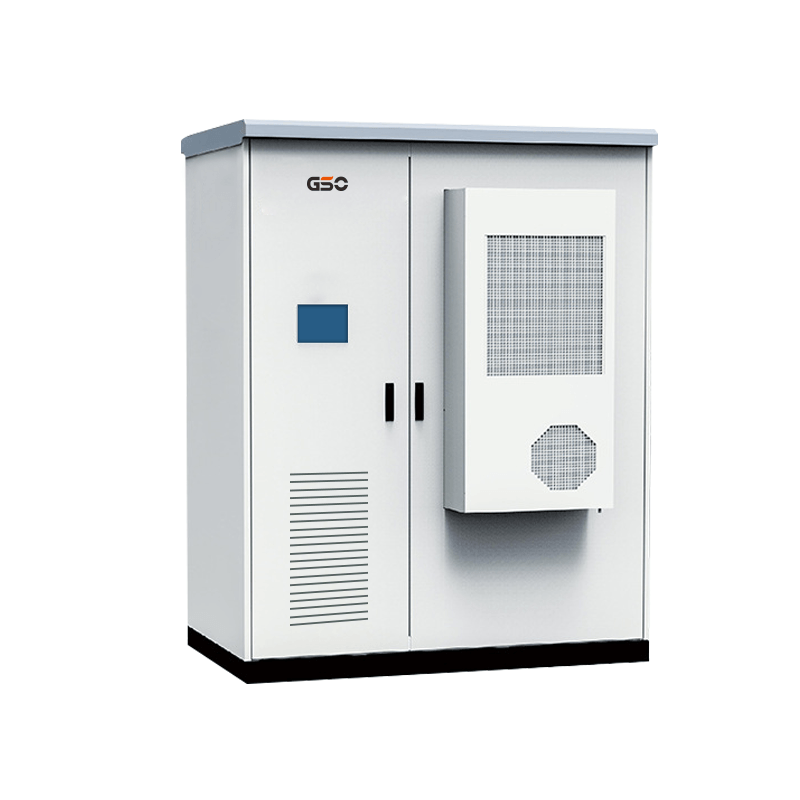

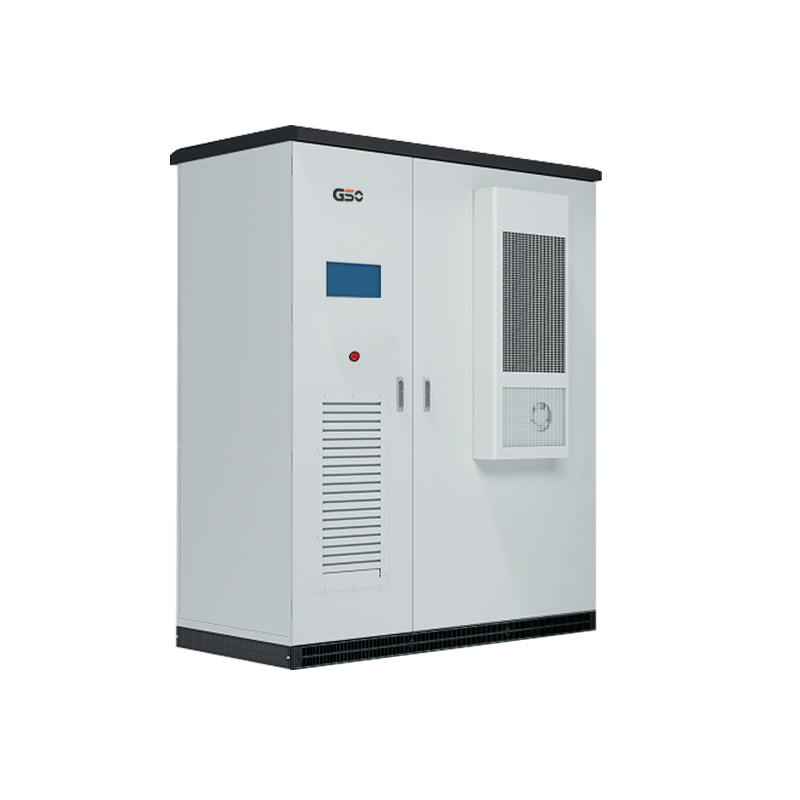

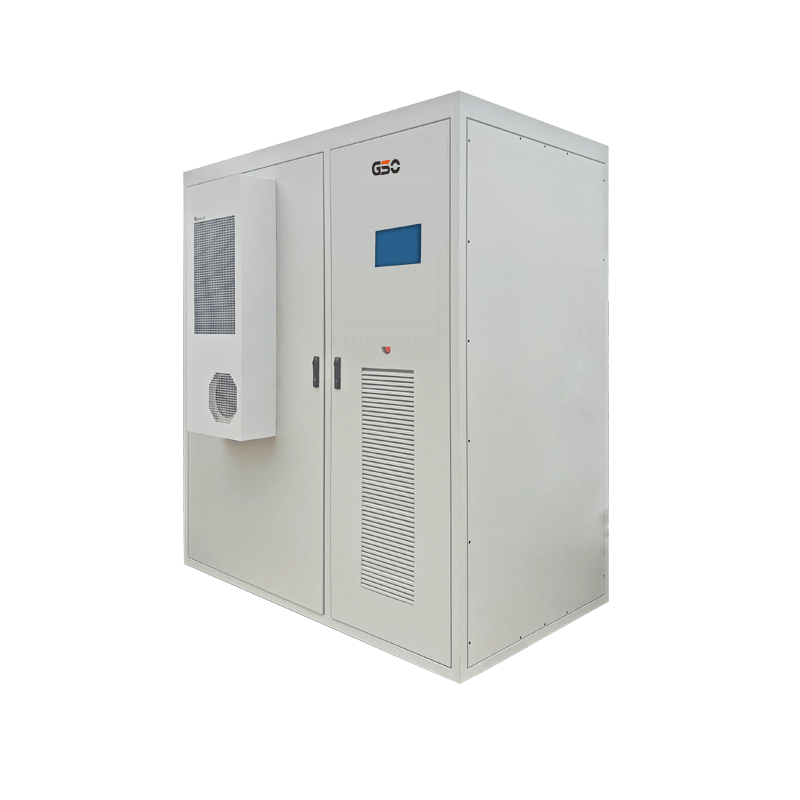

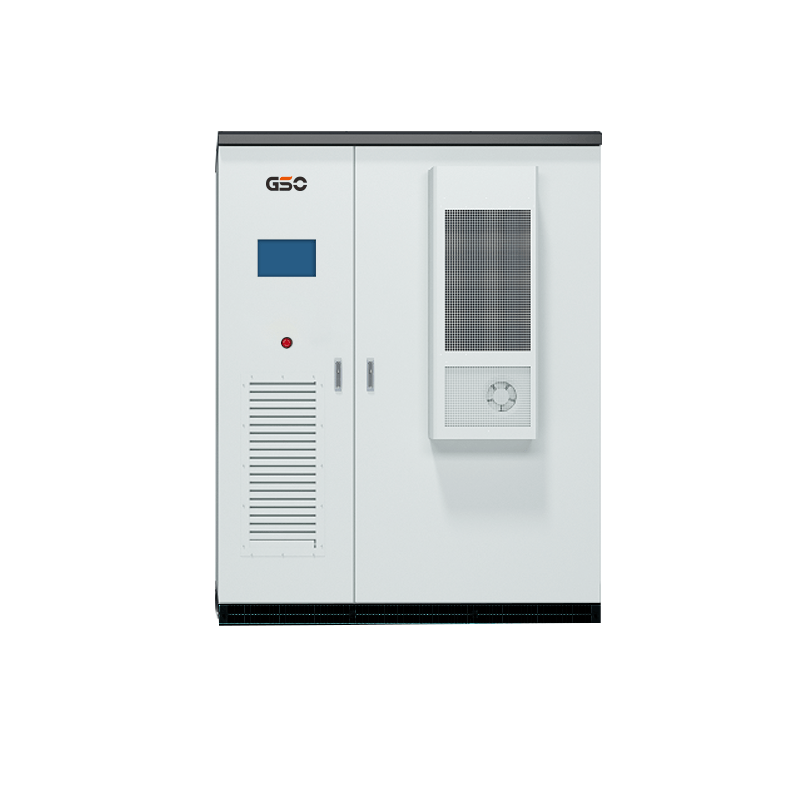

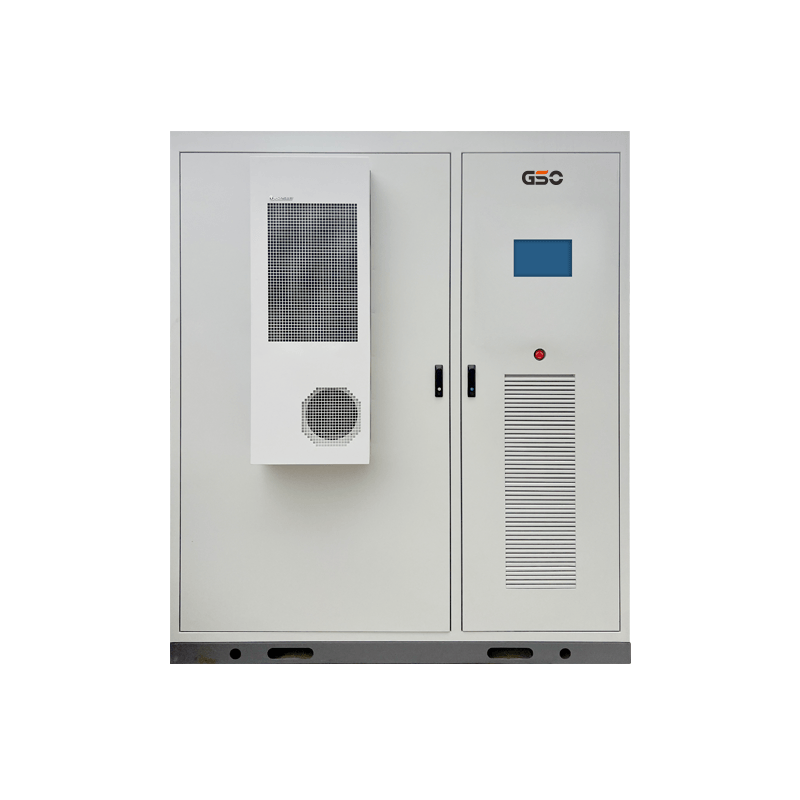

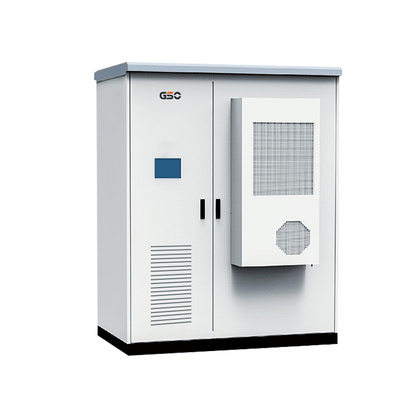

Air Cooling Outdoor Cabinet/Energy storage system/commercial and industrial energy storage system

Model

GSO50-100P

GSO100-200P

On grid

parameter

Rated power(kW)

50kW

100kW

Maximum output power

55 kW

110 kW

Rated AC voltage

AC 400V

AC voltage range

AC 3800V(-20%～+15%)

Rated AC frequency

50/60±2.5 Hz

Power factor

-0.99～+0.99

THDI

≤3%（Full loading）

Charging and discharging conversion time

＜100 ms

Isolation method

None isolation

Connect method

Three phase four wire

Battery parameter

Battery configuration

1P225S

1P210S

Battery cell type

LFP 150Ah

LFP 300Ah

Nominal voltage

720V

672V

Operating voltage

652.5~798.75V

609~745.5V

Battery capacity

108 kWh

201 kWh

System efficiency

PCS maximum efficiency

≥98%

System maximum efficiency

＞90%

System maximum efficiency

≤0.5C

Protectio

AC input

Yes

PCS AC protection

Yes

AC output protection

Yes

Over voltage protection

Yes

Fire protection

Aerosol / Perfluoro

General parameter

Dimension(D*W*H)

1200*1100*2200MM

1200*1600*2200MM

Weight

1.8 t

2.1 t

Incoming line method

Side connection(Bottom connection can be customized)

Operating temperature range

-20~50℃（De-rating power from 45）

Temperature humidity

≤95%，Non-condensing

Work Altitude

≤3000(De-rating power from 2000)

IP grade

IP54（Key Device IP65）

Cooling method

Industrial air Conditioning(for battery )/ Forced air cooling( for electrical equipment)

Communication

Communication interfaces

RS485/Ethernet

Communication Rules

RTU/MODBUS-TCP
